Important Problems

• Linear systems

• Eigenvalues

• Sparse matrices

Today's Topics

• Preliminaries

• Triangular and tridiagonal systems

• LU decomposition

• Cholesky decomposition

Trace

• tr(AB)=tr(BA)

• tr(ABC)=tr(BCA)=tr(CAB)

• tr(ABC)≠tr(ACB)

• tr(A′B)=vec(A)′vec(B)=vec(B)′vec(A)

Determinant

• det

• \det(A^{-1})=[\det(A)]^{-1}

• Weinstein-Aronszajn identity: \det(I_m+A_{m\times n}B_{n\times m})=\det(I_n+BA)

Woodbury Identity

(A+UCV)^{-1}=A^{-1}-A^{-1}U(C^{-1}+VA^{-1}U)^{-1}VA^{-1}

Special cases:

• (I+UV)^{-1}=I-U(I+VU)^{-1}V
• (I+UU')^{-1}=I-U(I+U'U)^{-1}U'
• (A+uv')^{-1}=A^{-1}-\frac{A^{-1}uv'A^{-1}}{1+v'A^{-1}u}

Block Matrix Inversion

If D - {CA}^{-1}B is invertible:

\scriptsize \begin{bmatrix} A & B \\ C & D \end{bmatrix}^{-1} = \begin{bmatrix} A^{-1} + A^{-1}B\left(D - {CA}^{-1}B\right)^{-1}{CA}^{-1} & -A^{-1}B\left(D - {CA}^{-1}B\right)^{-1} \\ -\left(D-{CA}^{-1}B\right)^{-1}{CA}^{-1} & \left(D - {CA}^{-1}B\right)^{-1} \end{bmatrix}

If A - {BD}^{-1}C is invertible:

\scriptsize \begin{bmatrix} A & B \\ C & D \end{bmatrix}^{-1} = \begin{bmatrix} \left(A - {BD}^{-1}C\right)^{-1} & -\left(A-{BD}^{-1}C\right)^{-1}{BD}^{-1} \\ -D^{-1}C\left(A - {BD}^{-1}C\right)^{-1} & \quad D^{-1} + D^{-1}C\left(A - {BD}^{-1}C\right)^{-1}{BD}^{-1} \end{bmatrix}

Block Matrix Determinant

If A is invertible:

\det\begin{pmatrix}A& B\\ C& D\end{pmatrix} = \det(A) \det\left(D - C A^{-1} B\right)

For any A,B\in \mathbb{R}^{n\times n}:

\det\begin{pmatrix}A& B\\ B& A\end{pmatrix} = \det(A+B) \det\left(A-B\right)

Triangular Matrices

L=\begin{bmatrix}\times\\ \times & \times\\ \vdots & \vdots & \ddots\\ \times & \times & \cdots & \times \end{bmatrix},\quad U=\begin{bmatrix}\times & \cdots & \times & \times\\ & \ddots & \vdots & \vdots\\ & & \times & \times\\ & & & \times \end{bmatrix}

• Triangular matrices are important building blocks of numerical linear algebra

• Cheap multiplication, determinant, and linear system solving

• Many matrix decompositions are in the form of triangular matrices

Basic Properties ^[1]

• A triangular matrix is invertible if and only if all its diagonal entries are non-zero

• Invertible lower (upper) triangular matrices are closed under multiplication and inversion

• The determinant of a triangular matrix is the product of its diagonal entries

\small \det\begin{bmatrix}\lambda_{1}\\ \times & \lambda_{2}\\ \vdots & \vdots & \ddots\\ \times & \times & \cdots & \lambda_{m} \end{bmatrix}=\lambda_{1}\det\begin{bmatrix}\lambda_{2}\\ \vdots & \ddots\\ \times & \cdots & \lambda_{m} \end{bmatrix}=\cdots=\lambda_{1}\cdots\lambda_{m}

Basic Properties

• Question: What is the computational complexity of multiplying a triangular matrix with a vector?

• O(n^2)

Triangular Systems

• We are interested in solving the linear systems of equations Lx=b L=\begin{bmatrix}\begin{array}{cccc} l_{11}\\ l_{21} & l_{22}\\ \vdots & \vdots & \ddots\\ l_{n1} & l_{n2} & \cdots & l_{nn} \end{array}\end{bmatrix}

• The algorithm is called forward substitution

Forward Substitution

• Let l_{k,1:k}=(l_{k1},\ldots,l_{kk})', x_{1:k}=(x_1,\ldots,x_k)', k=1,\ldots,n

• The k-th equation gives l_{k,1:k}'x_{1:k}=\sum_{i=1}^{k-1}l_{ki}x_i+l_{kk}x_k=b_k

• We can iteratively compute x_1,\ldots,x_n

Algorithm

• Start with x_1=b_1/l_{11}

• For k=2,\ldots,n, iterate x_k=\left(b_k-\sum_{i=1}^{k-1}l_{ki}x_i \right)/l_{kk}

• Computational complexity is O(n^2)

Backward Substitution

• Similarly, we can solve the linear systems of equations Ux=b with an upper triangular matrix U=\begin{bmatrix}u_{11} & u_{12} & \cdots & u_{1n}\\ & u_{22} & \cdots & u_{2n}\\ & & \ddots & \vdots\\ & & & u_{nn} \end{bmatrix}

• The algorithm is called backward substitution

• Please derive this algorithm by yourself

Implementation

• Simulate matrices

set.seed(123)
n = 2000
b = rnorm(n)
M = 0.1 * matrix(rnorm(n^2), n)
diag(M) = abs(diag(M)) + 1
# Get lower and upper triangular parts
L = M * lower.tri(M, diag = TRUE)
U = M * upper.tri(M, diag = TRUE)

Implementation

• In R, we have the forwardsolve() and backsolve() functions to implement the two algorithms

x1 = forwardsolve(L, b)
max(abs(L %*% x1 - b))  # Verify L*x1 = b

## [1] 4.193368e-12

x2 = backsolve(U, b)
max(abs(U %*% x2 - b))  # Verify U*x2 = b

## [1] 5.541345e-12

Implementation

• In fact, we do not need to create a new matrix
• The upper/lower triangular part would not be used in forwardsolve()/backsolve()
• Reduces memory use

x1 = forwardsolve(M, b)
max(abs(L %*% x1 - b))  # Verify L*x1 = b

## [1] 4.193368e-12

x2 = backsolve(M, b)
max(abs(U %*% x2 - b))  # Verify U*x2 = b

## [1] 5.541345e-12

Benchmark

• Whenever possible, use forwardsolve()/backsolve() instead of solve()

library(dplyr)
bench::mark(
    solve(L, b), forwardsolve(L, b), backsolve(U, b),
    max_iterations = 10, check = FALSE
) %>% select(expression, min, median)

## # A tibble: 3 × 3
##   expression              min   median
##   <bch:expr>         <bch:tm> <bch:tm>
## 1 solve(L, b)           1.35s    1.35s
## 2 forwardsolve(L, b)   1.24ms   1.37ms
## 3 backsolve(U, b)      1.39ms   1.68ms

Excercise

• Implement the backward substitution algorithm

• Experiment on simulated matrices

• Use backsolve() to verify the result

Tridiagonal Matrices

• Tridiagonal matrices are band matrices that have nonzero elements only on the diagonal and two subdiagonals

T=\begin{bmatrix}b_{1} & c_{1}\\ a_{2} & b_{2} & c_{2}\\ & a_{3} & b_{3} & \ddots\\ & & \ddots & \ddots & c_{n-1}\\ & & & a_{n} & b_{n} \end{bmatrix}

• Useful in eigenvalue computation and spline interpolation

Basic Properties

• Can be represented by three vectors

• Storage requirement is linear in n, i.e., O(n)

• Cheap multiplication, determinant, and linear system solving

• Question: What is the computational complexity of multiplying a tridiagonal matrix with a vector?

• O(n)

Tridiagonal Systems

• We are interested in solving the linear systems of equations Tx=d

\begin{bmatrix}b_{1} & c_{1}\\ a_{2} & b_{2} & c_{2}\\ & a_{3} & b_{3} & \ddots\\ & & \ddots & \ddots & c_{n-1}\\ & & & a_{n} & b_{n} \end{bmatrix}\begin{bmatrix}x_{1}\\ x_{2}\\ x_{3}\\ \vdots\\ x_{n} \end{bmatrix}=\begin{bmatrix}d_{1}\\ d_{2}\\ d_{3}\\ \vdots\\ d_{n} \end{bmatrix}

Algorithm

• Forward sweep

\small c_{i}'=\begin{cases} \frac{c_{i}}{b_{i}}, & i=1\\ \frac{c_{i}}{b_{i}-a_{i}c_{i-1}'}, & i=2,\ldots,n-1 \end{cases},\qquad d_{i}'=\begin{cases} \frac{d_{i}}{b_{i}}, & i=1\\ \frac{d_{i}-a_{i}d_{i-1}'}{b_{i}-a_{i}c_{i-1}'}, & i=2,\ldots,n \end{cases}

• Backward substitution

\begin{align*} x_{n} & =d_{n}',\\ x_{i} & =d_{i}'-c_{i}'x_{i+1},\quad i=n-1,\ldots,1 \end{align*}

• Computational complexity is O(n)

Implementation

• Simulate matrices

set.seed(123)
n = 2000
diagonal = rnorm(n)
lsubdiag = rnorm(n - 1)
usubdiag = rnorm(n - 1)
b = rnorm(n)
# Explicitly form the matrix
M = diag(diagonal)
diag(M[2:n, ]) = lsubdiag
diag(M[, 2:n]) = usubdiag
M[1:5, 1:5]

##            [,1]       [,2]       [,3]       [,4]      [,5]
## [1,] -0.5604756  1.1210219  0.0000000 0.00000000 0.0000000
## [2,] -0.5116037 -0.2301775  0.1965498 0.00000000 0.0000000
## [3,]  0.0000000  0.2369379  1.5587083 0.65011319 0.0000000
## [4,]  0.0000000  0.0000000 -0.5415892 0.07050839 0.6710042
## [5,]  0.0000000  0.0000000  0.0000000 1.21922765 0.1292877

Implementation

• The tridiagmatrix() function in the cmna R package implements the described algorithm

library(cmna)
x = tridiagmatrix(lsubdiag, diagonal, usubdiag, b)
max(abs(M %*% x - b))  # Verify M*x = b

## [1] 2.298162e-13

Benchmark

• The specialized algorithm is much faster than the general solve()

bench::mark(
    solve(M, b),
    tridiagmatrix(lsubdiag, diagonal, usubdiag, b),
    max_iterations = 10, check = FALSE
) %>% select(expression, min, median)

## # A tibble: 2 × 3
##   expression                                          min   median
##   <bch:expr>                                     <bch:tm> <bch:tm>
## 1 solve(M, b)                                       1.33s    1.33s
## 2 tridiagmatrix(lsubdiag, diagonal, usubdiag, b)  625.3µs  675.2µs

Benchmark

• Warning: the described algorithm may be unstable in some cases. If stability is required, use LU decomposition instead

LU Decomposition

• LU decomposition is an important method to solve general linear systems

• Factorizes an n\times n matrix A into the product of two triangular matrices, A=LU

• L lower triangular, with ones on the diagonal

• U upper triangular

Factorization Theorem ^[2]

Let A be an n\times n matrix such that all of its diagonal submatrices are nonsingular. Then there exist a lower triangular matrix L with unit diagonal elements (i.e., l_{ii}=1), and an upper triangular matrix U, such that A=LU.

Solving Linear Systems

• Suppose the decomposition A=LU is given

• If we wish to solve Ax=b, then:

• First, solve Ly=b to get y (forward substitution)

• Second, solve Ux=y to get x (backward substitution)

Computing Determinant

• Suppose the decomposition A=LU is given

• Question: How to compute \require{color}\color{deeppink}\det(A)?

• \det(A)=\det(L)\det(U)=\det(U)=u_{11}\cdots u_{nn}

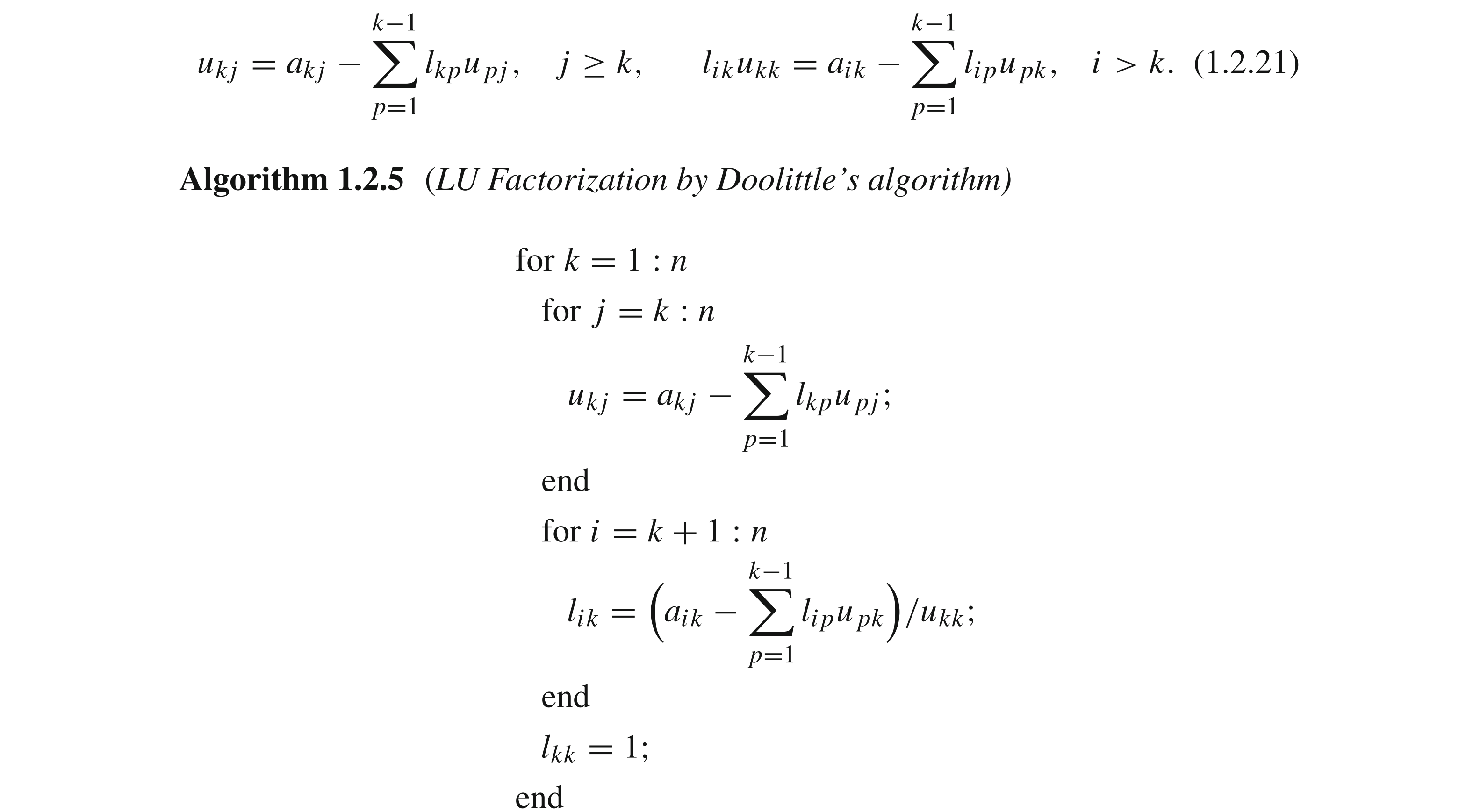

Algorithm ^[3]

Based on the relation

Pivoting

• In practice, LU decomposition is performed with a permutation matrix Q, which is typically called pivoting: QA=LU

• This is used to enhance the numerical stability

• Q has the effect of interchanging rows of A

• Q satisfies Q'Q=QQ'=I

Pivoting

• When using this factorization to solve linear systems Ax=b

• First, compute \tilde{b}=Qb

• Second, solve Ly=\tilde{b} to get y

• Third, solve Ux=y to get x

Computational Complexity

• Decomposition part is O(n^3)

• Linear system solving part is O(n^2)

Implementation

• The lu() function in the Matrix package can be used to compute the LU decomposition of a square matrix
• Note that this function factorizes A as A=PLU, or equivalently, P'A=LU (i.e., Q=P')

library(Matrix)
set.seed(123)
n = 5
M = matrix(rnorm(n^2), n)
lu_obj = lu(M)
decomp = expand(lu_obj)
names(decomp)  # A named list

## [1] "L" "U" "P"

Implementation

decomp$L

## 5 x 5 Matrix of class "dtrMatrix" (unitriangular)
##      [,1]        [,2]        [,3]        [,4]        [,5]
## [1,]  1.00000000           .           .           .           .
## [2,] -0.35957699  1.00000000           .           .           .
## [3,]  0.04523514 -0.49963385  1.00000000           .           .
## [4,]  0.08294543 -0.27038315 -0.28235315  1.00000000           .
## [5,] -0.14767195  0.21751065  0.15641432 -0.65806034  1.00000000

decomp$U

## 5 x 5 Matrix of class "dtrMatrix"
##      [,1]       [,2]       [,3]       [,4]       [,5]
## [1,]  1.5587083 -1.2650612  0.4007715 -1.9666172 -1.0260044
## [2,]          .  1.2601781  1.3681900  1.0797629 -1.4367513
## [3,]          .          .  0.7761478  1.3298022 -1.4003294
## [4,]          .          .          .  0.3577540 -1.3237976
## [5,]          .          .          .          . -0.7090854

Implementation

decomp$P

## 5 x 5 sparse Matrix of class "pMatrix"
##
## [1,] . | . . .
## [2,] . . . . |
## [3,] | . . . .
## [4,] . . | . .
## [5,] . . . | .

# Verify P*L*U = A
max(abs(decomp$P %*% decomp$L %*% decomp$U - M))

## [1] 2.220446e-16

Implementation

• We can then write a simple function to solve linear systems given the decomposition result

lu_solve = function(decomp, b)
{
    bt = t(decomp$P) %*% b
    y = forwardsolve(as.matrix(decomp$L), bt)  # L*y = b
    x = backsolve(as.matrix(decomp$U), y)      # U*x = y
    x
}

Implementation

• Verify the result

set.seed(123)
n = 2000
M = matrix(rnorm(n^2), n)
b = rnorm(n)
decomp = expand(lu(M))
x = lu_solve(decomp, b)
max(abs(M %*% x - b))  # Verify M*x = b

## [1] 1.933176e-11

Benchmark

• The LU decomposition itself dominates the time of solving linear systems

bench::mark(
    solve(M, b), expand(lu(M)), lu_solve(decomp, b),
    max_iterations = 10, check = FALSE
) %>% select(expression, min, median)

## # A tibble: 3 × 3
##   expression               min   median
##   <bch:expr>          <bch:tm> <bch:tm>
## 1 solve(M, b)            1.42s    1.42s
## 2 expand(lu(M))          1.42s    1.42s
## 3 lu_solve(decomp, b)  20.18ms   21.2ms

When to Use?

• If Ax=b only needs to be solved once:

  • Directly calling solve() is more convenient
  • solve() internally uses algorithms similar to LU decomposition

• If a sequence of linear systems Ax^{(k)}=b^{(k)} need to be solved iteratively

  • First factorize A using LU decomposition
  • Then use lu_solve() to get each solution x^{(k)}

• We will encounter the second case in many optimization problems

Cholesky Decomposition

• LU decomposition applies to general square matrices

• If we can guarantee the matrix A to be positive definite

• Example: A=X'X+\lambda I, \lambda>0

• Then the Cholesky decomposition A=LL' can be computed

• L is a lower triangular matrix

Factorization Theorem ^[2]

Let A be an n\times n real symmetric positive definite matrix. Then there exists a unique lower triangular matrix L with positive diagonal elements, such that A=LL'.

Algorithm ^[3]

Based on the relation l_{jj}=\sqrt{a_{jj}-\sum_{k=1}^{j-1}l_{jk}^2} l_{ij}=\left(a_{ij}-\sum_{k=1}^{j-1}l_{ik}l_{jk}\right)/l_{jj},\quad i=j+1,\ldots,n

Solving Linear Systems

• Suppose the decomposition A=LL' is given

• If we wish to solve Ax=b, then:

• First, solve Ly=b to get y (forward substitution)

• Second, solve L'x=y to get x (backward substitution)

Computing Determinant

• Suppose the decomposition A=LL' is given

• Question: How to compute \require{color}\color{deeppink}\det(A)?

• \det(A)=[\det(L)]^2=l_{11}^2\cdots l_{nn}^2

Computational Complexity

• Decomposition part is O(n^3)

• Linear system solving part is O(n^2)

• Same orders as LU decomposition, but in general faster

Implementation

• In R, the chol() function can be used to compute Cholesky decomposition
• Note that this function factorizes A as A=R'R, so you actually get R=L'

set.seed(123)
n = 5
M = matrix(rnorm(n^2), n)
A = crossprod(M)  # positive definite
R = chol(A)
R

##          [,1]      [,2]       [,3]       [,4]       [,5]
## [1,] 1.678801 -1.873512 -0.1240544 -2.4977185 -0.6449736
## [2,] 0.000000  1.383693  1.2267898  0.6009298 -0.7682812
## [3,] 0.000000  0.000000  0.7676374  1.1355032 -0.8695156
## [4,] 0.000000  0.000000  0.0000000  0.3672150 -1.0253122
## [5,] 0.000000  0.000000  0.0000000  0.0000000  0.5906208

Implementation

• Then we can write a simple function to solve linear systems given the decomposition result

chol_solve = function(R, b)
{
    y = backsolve(R, b, transpose = TRUE)  # R'*y = b
    x = backsolve(R, y)                    # R*x = y
    x
}

Implementation

• Verify the result

set.seed(123)
n = 2000
M = matrix(rnorm(n^2), n)
A = crossprod(M)
b = rnorm(n)
R = chol(A)
max(abs(crossprod(R) - A))  # Verify R'R = A

## [1] 1.364242e-12

x = chol_solve(R, b)
max(abs(A %*% x - b))       # Verify A*x = b

## [1] 4.437666e-09

Benchmark

• The decomposition part dominates the time of solving linear systems

bench::mark(
    solve(A, b), chol(A), chol_solve(R, b),
    max_iterations = 10, check = FALSE
) %>% select(expression, min, median)

## # A tibble: 3 × 3
##   expression            min   median
##   <bch:expr>       <bch:tm> <bch:tm>
## 1 solve(A, b)         1.41s    1.41s
## 2 chol(A)             1.34s    1.34s
## 3 chol_solve(R, b)   3.38ms   3.72ms

When to Use?

• As long as you can guarantee A is positive definite, prefer to use Cholesky decomposition

• solve() does not know the special property of A, so it will use the slightly slower LU decomposition

• Cholesky decomposition utilizes this "prior information"

• Cholesky decomposition can also be used when a sequence of linear systems Ax^{(k)}=b^{(k)} need to be solved iteratively

References

[1] Folkmar Bornemann (2018). Numerical Linear Algebra. Springer.

[2] Grégoire Allaire and Sidi Mahmoud Kaber (2008). Numerical linear algebra. Springer.

[3] Åke Björck (2015). Numerical methods in matrix computations. Springer.
